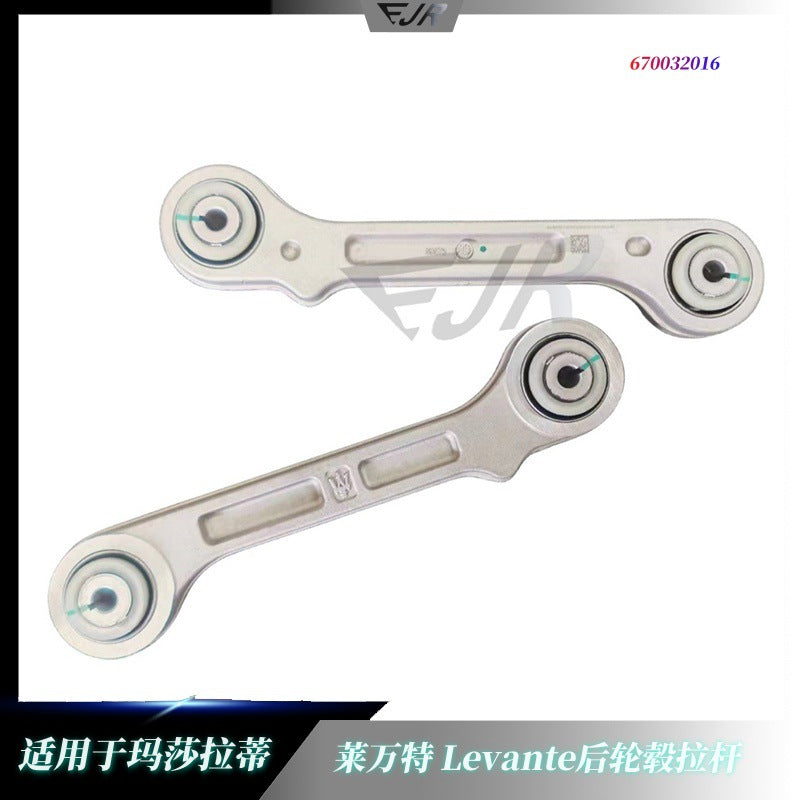

Maserati Levante Rear Wheel Hub Tension Bar 670032016 Suspension Link

Maserati Levante Rear Wheel Hub Tension Bar – OE Reference 670032016

This rear suspension tension bar is designed for the Maserati Levante and corresponds with OE reference 670032016. It links suspension mounting points around the rear hub area to help control wheel movement under acceleration, braking and cornering loads.

Construction & Workmanship

The link uses a rigid metal arm structure with integrated elastomer bushings at the mounting points. This combination provides the strength needed to maintain suspension geometry while isolating road vibration and small impact loads from the chassis.

Function

A correctly functioning tension bar helps maintain rear-wheel alignment, predictable tracking and controlled suspension movement. Replacing a worn link can address looseness, irregular wheel movement and alignment instability caused by deteriorated joints or bushings.

Fitment

For Maserati Levante applications using OE reference 670032016. Match the original part number and vehicle specification before ordering.

How to Replace

1. Raise and safely support the vehicle.
2. Remove the rear wheel and access the suspension link mounting points.
3. Support the hub or suspension assembly before loosening fasteners.
4. Remove the old tension bar and install the replacement in the same orientation.
5. Tighten suspension fasteners to the vehicle manufacturer’s service specification at the correct ride-height position.
6. Perform a four-wheel alignment after replacement.

FAQ

What does this part do?
It controls rear hub movement and helps keep suspension geometry stable.

What part number should I compare?
670032016.

Should alignment be done afterward?
Yes. Suspension-link replacement should be followed by an alignment check.

When is replacement useful?
When the original link or its bushings develop wear, play, deformation or damage.
