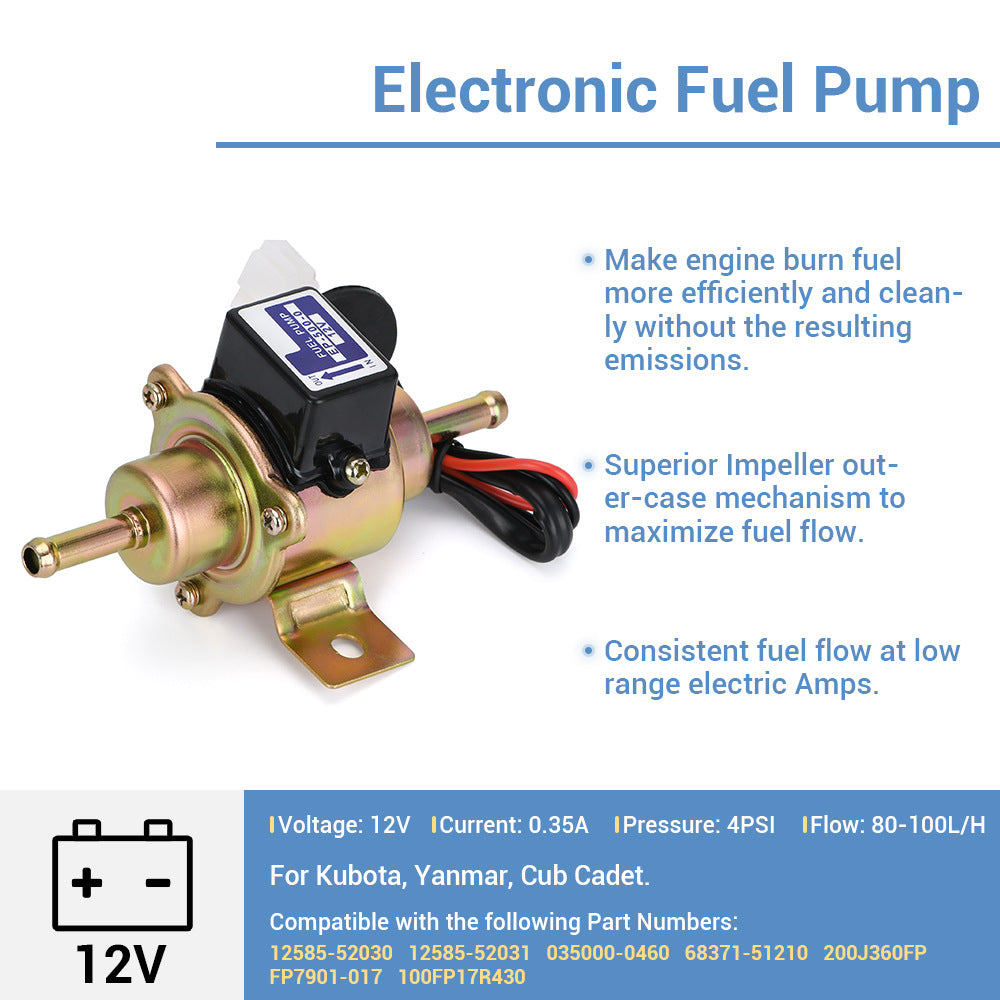

Universal 12V Electric Fuel Pump – EP-500-0 / 035000-0460
A compact external electric fuel pump designed for universal automotive, motorcycle, generator and custom fuel-system applications requiring a low-pressure 12V supply pump. The EP-500-0 / 035000-0460 format uses a simple inline layout, metal pump body and integrated mounting bracket for straightforward installation in custom fuel-delivery systems.
Construction & Materials

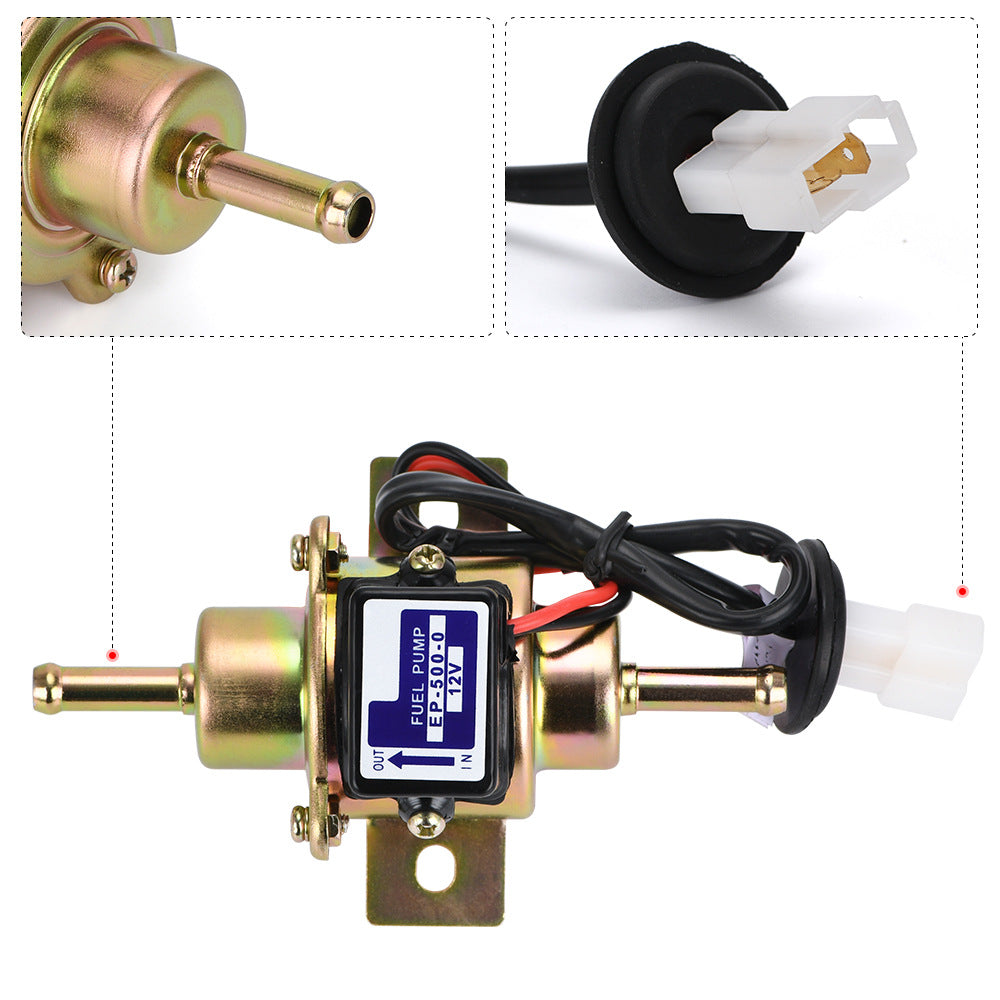

The pump uses a rigid plated-metal body with integrated inlet and outlet tubes, an enclosed 12V electric drive section and a stamped mounting bracket for secure chassis installation. The compact cylindrical design keeps the assembly lightweight while providing a durable housing for the internal pumping mechanism.
Key Specifications
- Reference: EP-500-0 / 035000-0460
- Voltage: 12V DC
- Fuel Flow: approximately 80–100 L/h
- Output Pressure: approximately 3–6 PSI

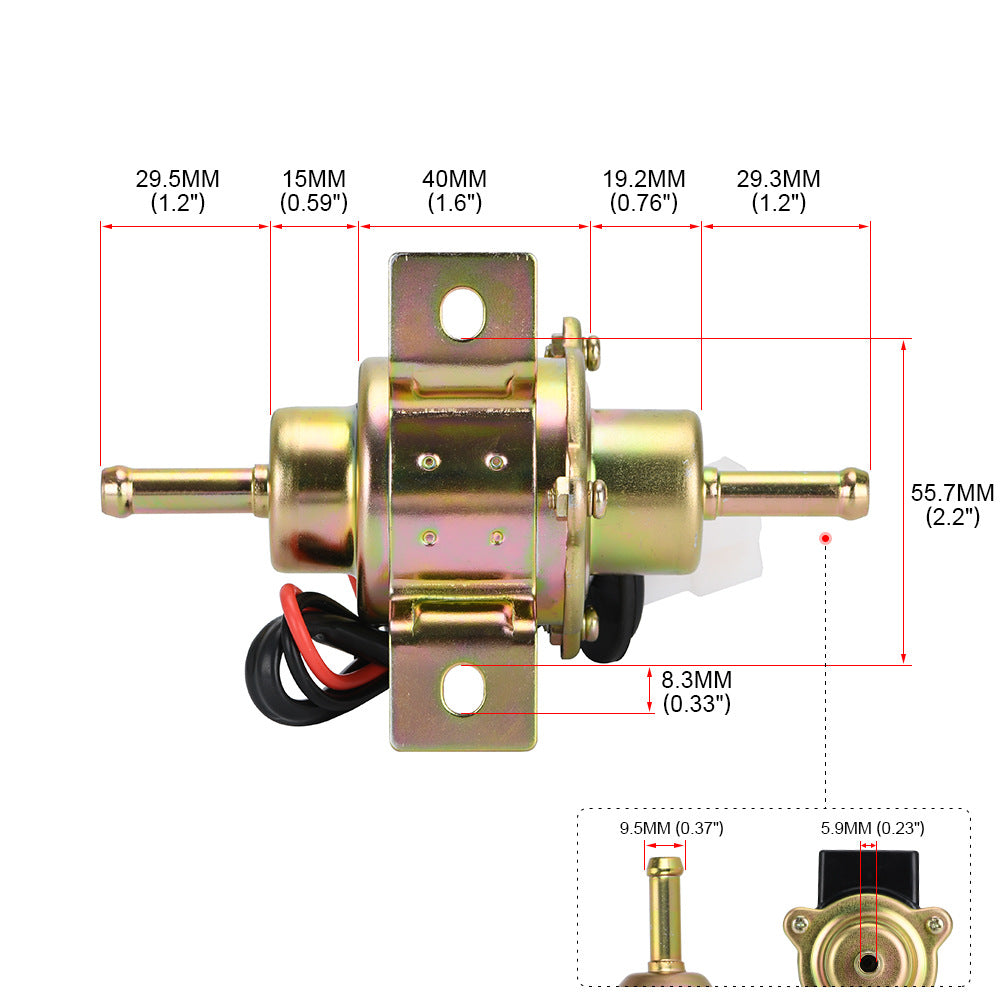

- Inlet / Outlet: approximately 8 mm hose connection
- Mounting Hole Spacing: approximately 67 mm

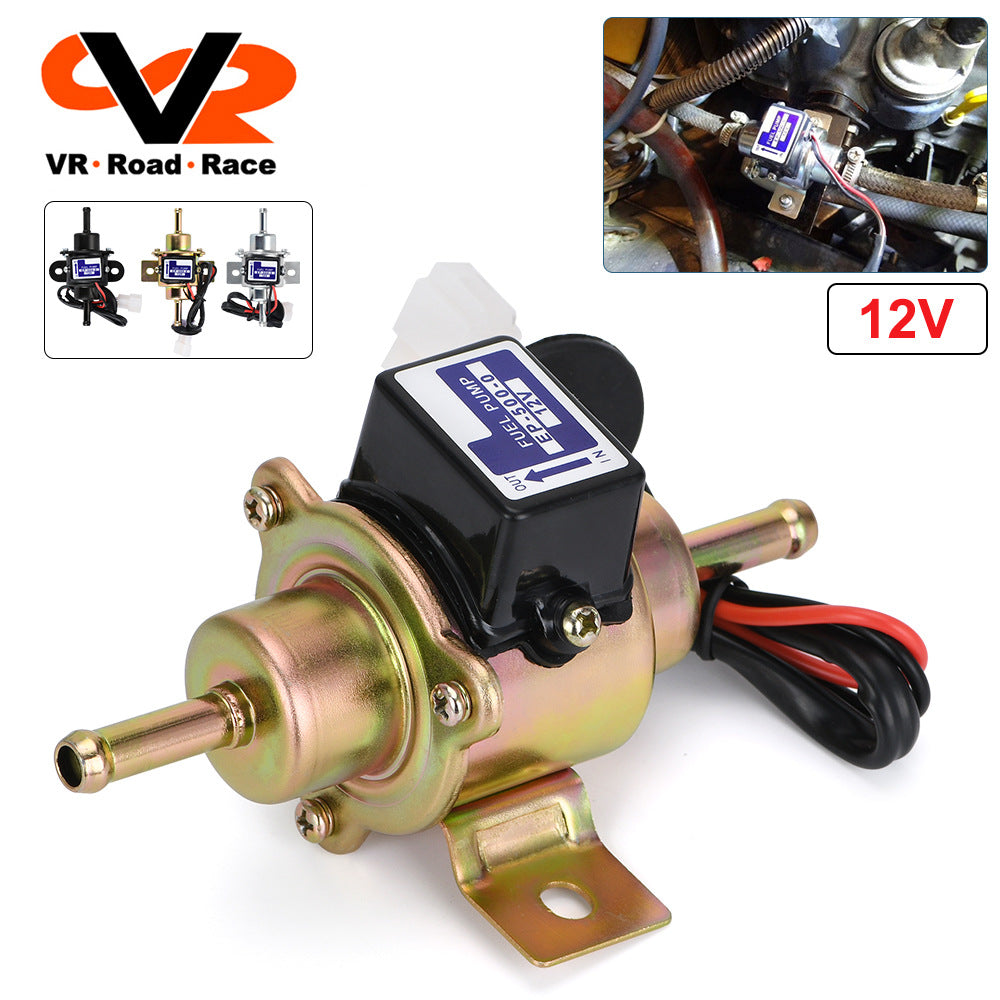

Available Finishes
- Gold – classic plated finish.
- Black – discreet performance look.
- Silver – clean metallic finish.
What It Does
The electric pump draws fuel from the tank or upstream fuel line and supplies a steady low-pressure flow to the carburetor or compatible fuel-delivery system. It is useful for custom conversions, auxiliary fuel systems, older vehicles, small engines and replacement applications that use this common EP500-style pump format.

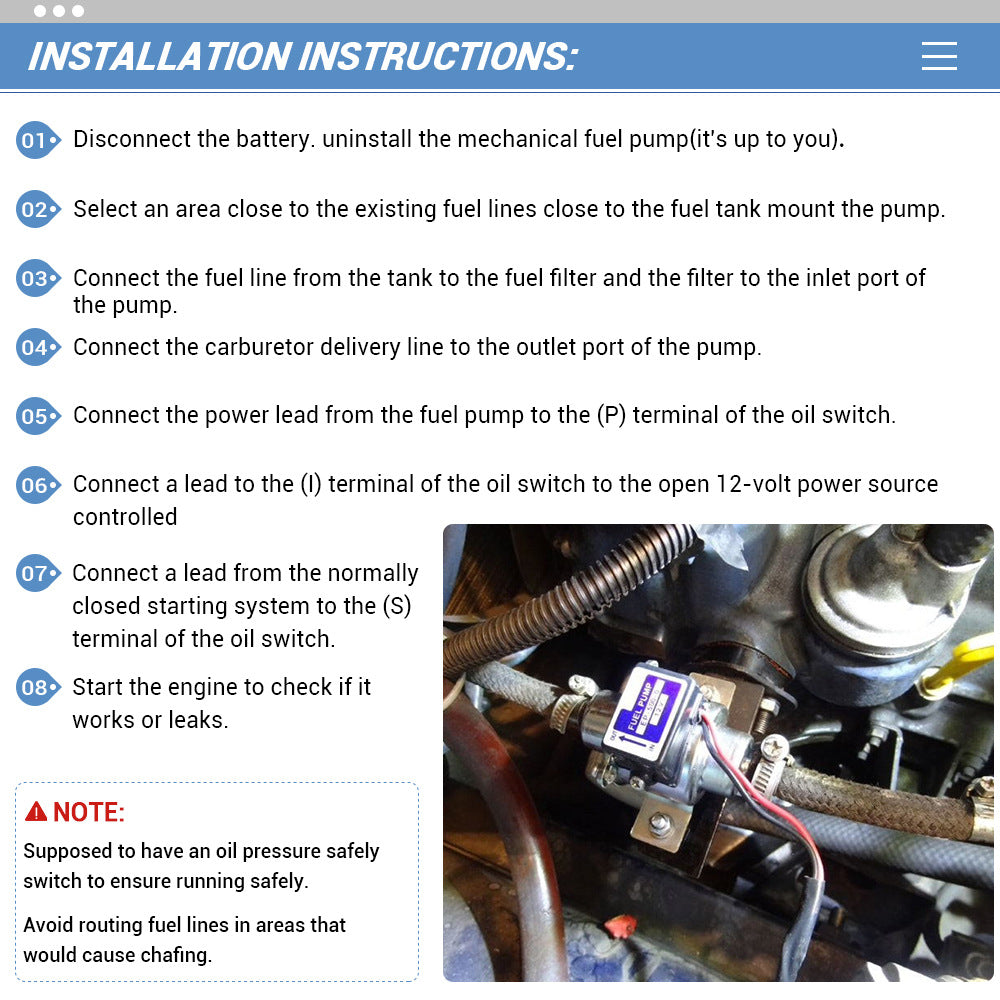

Installation Guide
- Disconnect battery power and safely relieve fuel-system pressure before beginning work.
- Mount the pump securely in a protected location close to the fuel supply, using the integrated bracket.
- Connect the fuel inlet and outlet hoses using the correct fuel-rated hose and clamps.
- Wire the pump through a fused 12V supply and suitable relay / ignition-controlled circuit.
- Check fuel-flow direction before energizing the pump.
- Prime the system and inspect every connection for leakage before starting the engine.
- Confirm that the application operates within the pump’s low-pressure range.
Why Choose This Pump?
The EP500-style pump offers a simple, compact and easy-to-service solution for low-pressure fuel delivery. Its universal hose connections and mounting bracket make it suitable for a wide range of custom and replacement installations.
FAQ
What part numbers does this match?
EP-500-0 and 035000-0460 are the primary references for this pump format.
Is this a 12V pump?
Yes. This listing is for the 12V version.
What pressure does it produce?
The pump is designed for low-pressure fuel delivery in the approximately 3–6 PSI range.
What hose size does it use?
The inlet and outlet are approximately 8 mm.
Can I choose the color?
Yes. Gold, black and silver finish options are available.
