Universal High-Flow Inline Fuel Filter – 10 Micron / 100 Micron with AN Fittings & Mounting Clamp
Universal High-Flow Inline Fuel Filter – 10 Micron / 100 Micron with AN Fittings & Mounting Clamp
High-Flow Inline Fuel Filter for Performance Fuel Systems
Protect pumps, injectors and fuel-system components with a serviceable inline fuel filter designed for custom automotive fuel systems. The black billet-style housing is available with either a fine 10-micron element or a coarse 100-micron element and is supplied with mounting hardware and AN-style adapter fittings for a clean performance installation.
Premium Construction

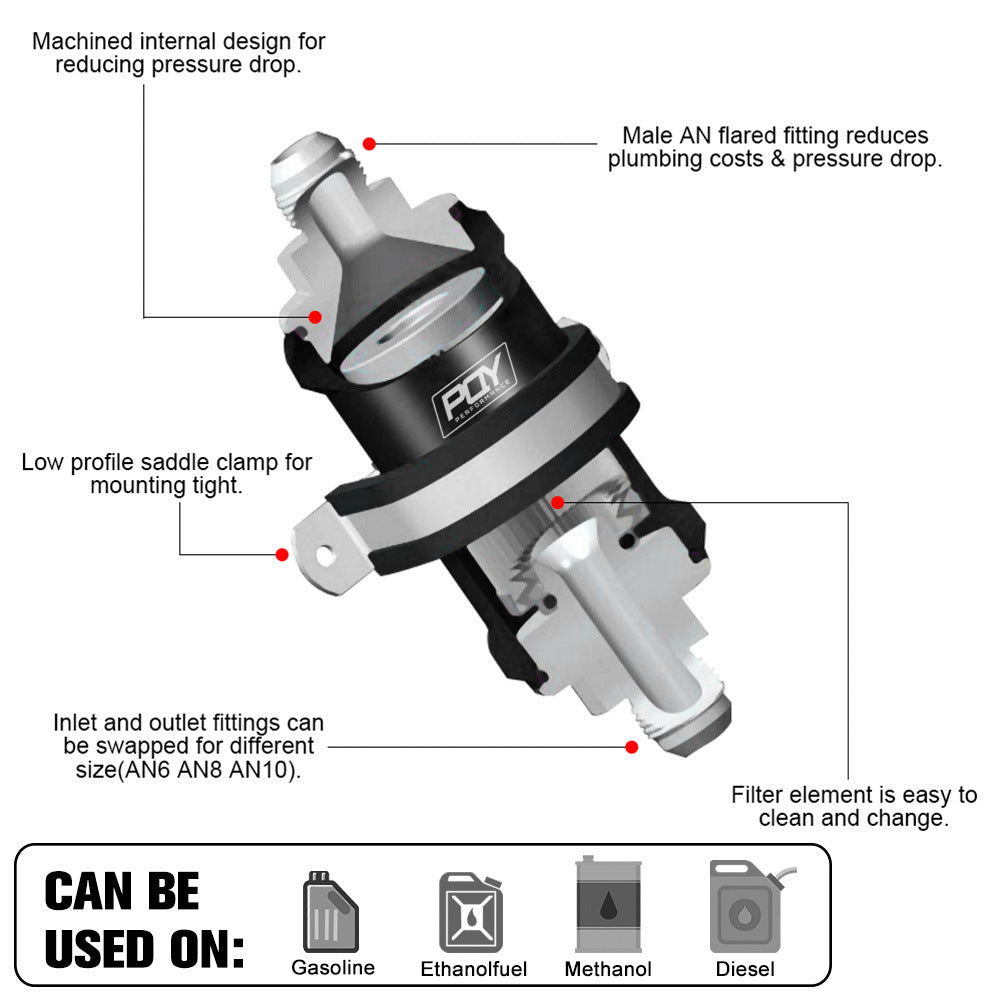

The filter body uses a lightweight aluminum housing with a black anodized finish for corrosion resistance, durability and a professional motorsport appearance. Machined threaded ends allow the housing to be opened for filter-element inspection and servicing, while the supplied clamp provides secure chassis or engine-bay mounting.
Choose the Correct Micron Rating
- 10 Micron – fine filtration suited to protecting sensitive downstream fuel-system components such as injectors.
- 100 Micron – coarse pre-filtration suited to catching larger debris before fuel reaches a high-flow pump.

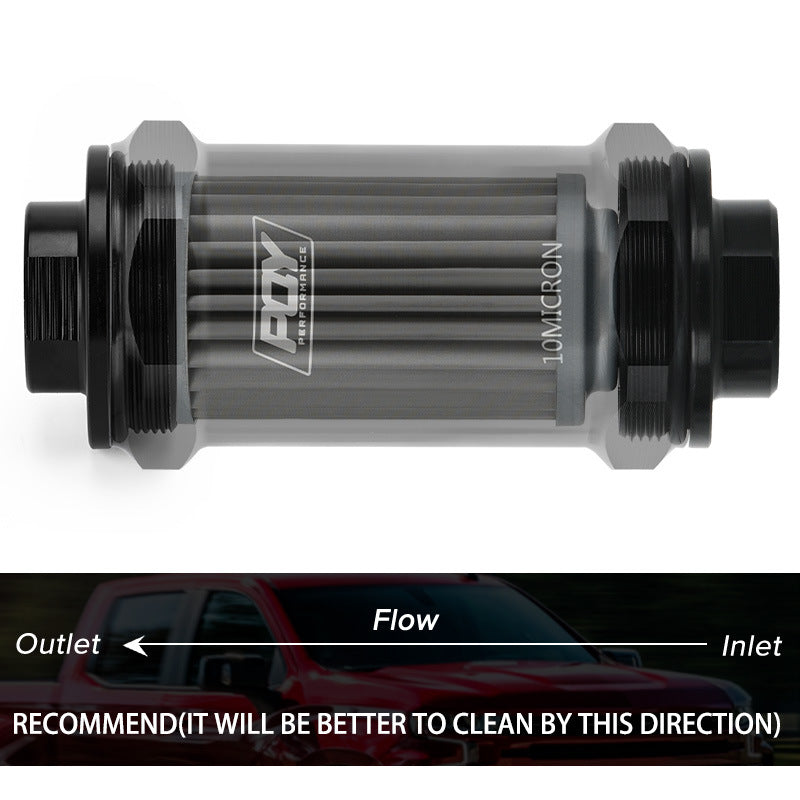

Fuel-System Function
The filter removes solid contamination from the fuel stream before particles can reach critical components. Correct filtration helps maintain stable fuel delivery, supports injector cleanliness and reduces the risk of debris entering high-flow pumps, rails and regulators.
Included Components

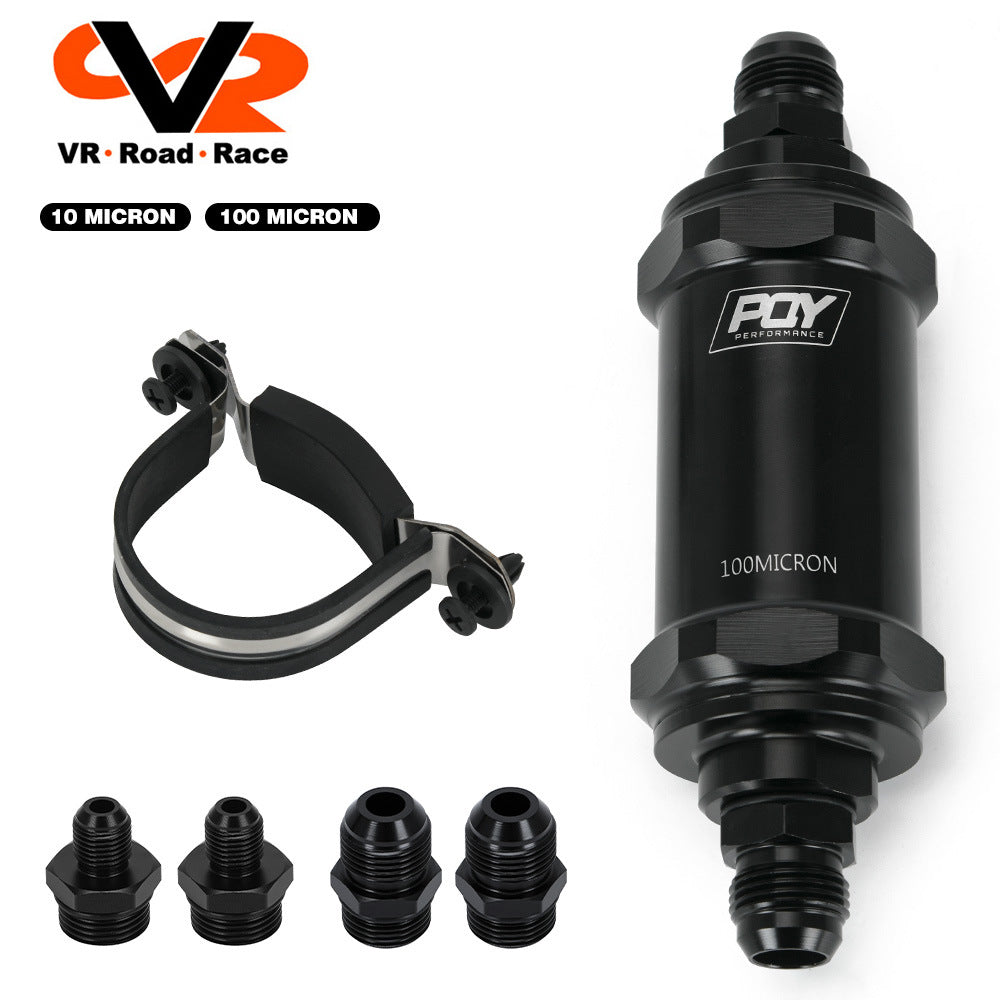

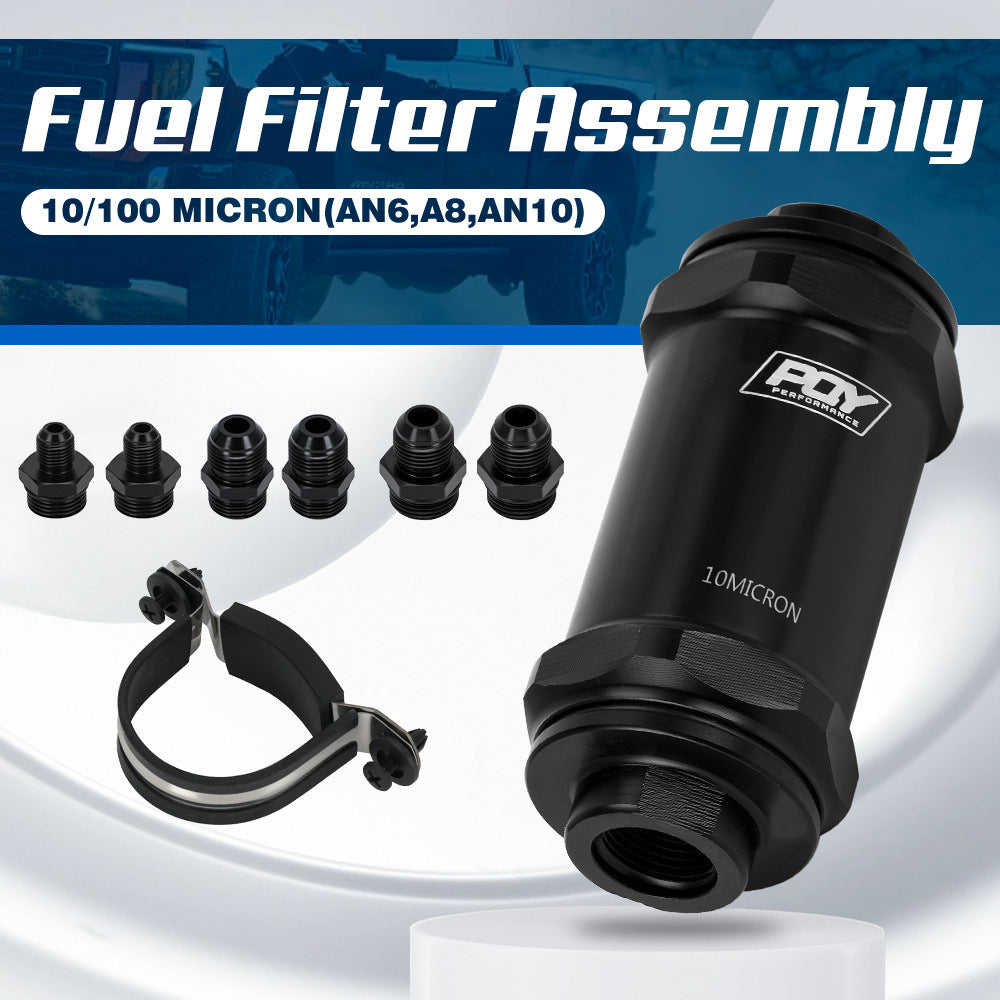

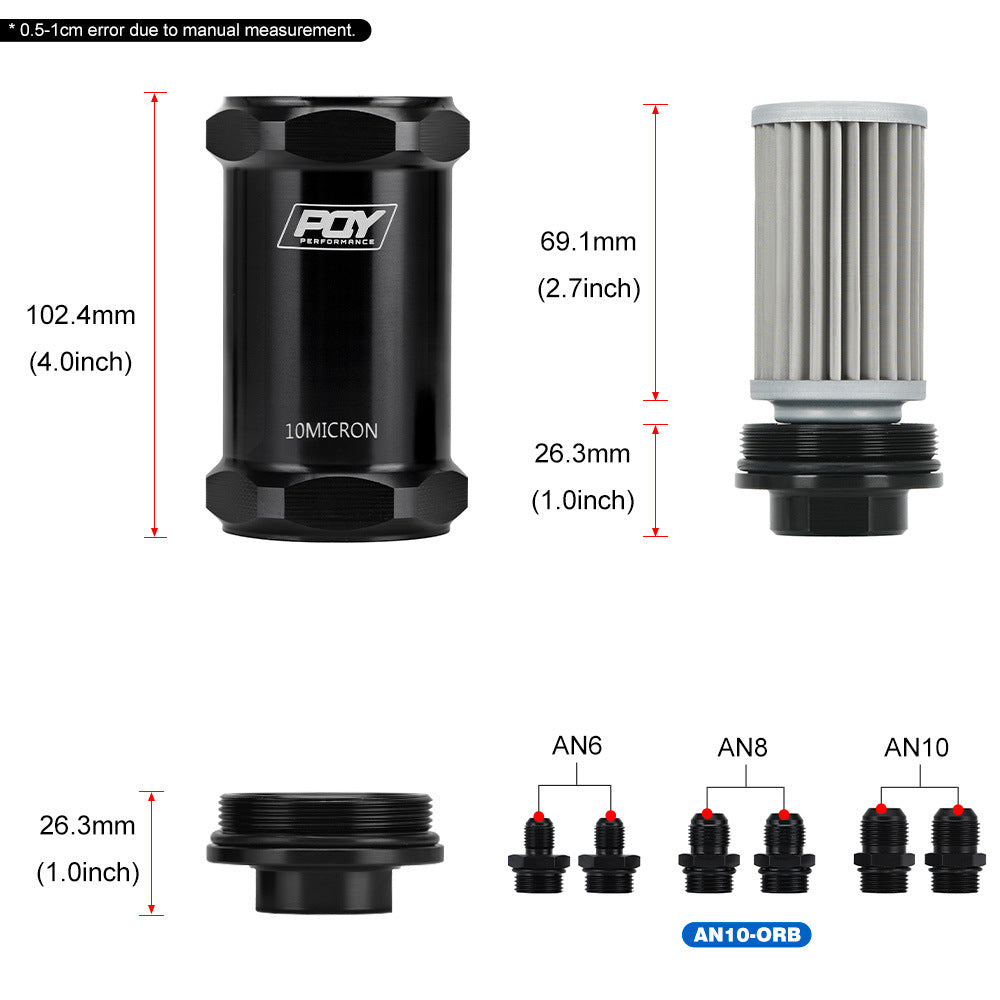

The package includes the reusable black filter housing, selected 10-micron or 100-micron filter element, mounting clamp and adapter fittings shown in the product images.
Installation Guide
- Disconnect battery power and safely relieve fuel-system pressure.
- Select an accessible mounting location away from exhaust heat, road impact and moving components.
- Use the supplied clamp to mount the filter securely in the intended fuel-flow path.
- Install the correct AN fittings using compatible fuel-system seals and fittings.
- For a 100-micron pre-filter configuration, install the filter upstream of the main fuel pump.
- For a 10-micron fine-filter configuration, install it downstream of the pump before the fuel rail or injectors.
- Prime the system, inspect every connection for leakage and verify unrestricted fuel flow before operation.
Why Use a Serviceable Filter?
A reusable housing makes routine inspection and element replacement easier than sealed disposable filters. It also allows the fuel system to be configured with the filtration level that best suits the position of the filter within a performance fuel-delivery setup.
FAQ
What is the difference between 10 micron and 100 micron?
10 micron provides finer filtration for downstream protection, while 100 micron is better suited to coarse pre-filtration before the fuel pump.
Does the kit include fittings?
Yes. Adapter fittings and a mounting clamp are included.
Is the filter reusable?
The aluminum housing is serviceable and can be opened for element inspection or replacement.
Can it be used in a custom AN fuel system?
Yes. The filter is designed for universal performance fuel plumbing with compatible AN-style fittings.
Where should I mount it?
Mount it securely in an accessible location away from exhaust heat and moving components, using the filtration rating appropriate to the filter’s position in the fuel system.
